Customized Infrared Thermal Radiation Burner Solutions for Industrial Heating

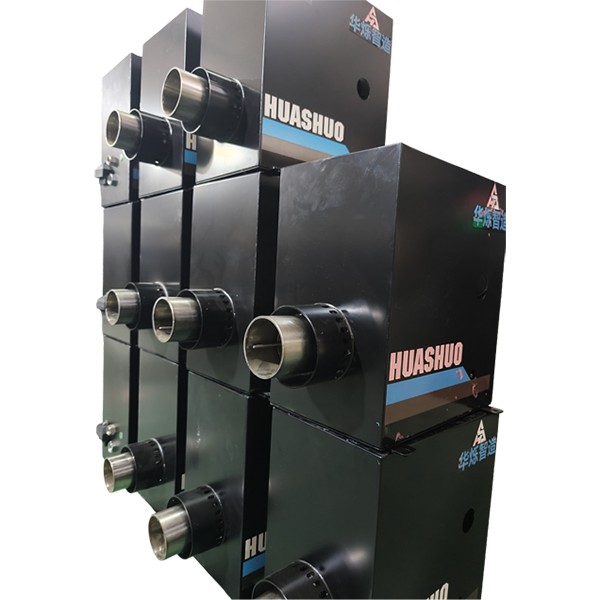

In modern industrial heating systems, achieving high efficiency, uniform heat distribution, and reduced emissions is a constant engineering pursuit. Central to many advanced thermal solutions is the Infrared Thermal Radiation Burner. Huashuo, a premier manufacturer with decades of dedicated experience in combustion technology, has refined this burner category to deliver outstanding performance across a spectrum of demanding applications. The design departs radically from conventional hot-air convection burners by harnessing the power of electromagnetic waves within the infrared spectrum to transfer energy directly to the target material. This mechanism slashes warm-up time, minimizes energy wasted on heating surrounding air, and creates a highly controllable process environment. Whether integrated into textile drying, paint curing, food processing, or metal preheating lines, the Huashuo infrared thermal radiation burner stands as a reliable workhorse engineered for precision and longevity. Our Infrared Thermal Radiation Burner series is divided into the Metal Fiber Infrared Burner series and the Power Series Infrared Burner series.

How an Infrared Thermal Radiation Burner Works

The fundamental operating principle of an infrared thermal radiation burner involves mixing fuel—typically natural gas or propane—with combustion air in a precisely engineered venturi or forced-draft system. The air-fuel mixture is fed into a porous ceramic, metal fiber, or composite emitter panel. On the emitter surface, combustion occurs almost entirely within the pores or extremely close to the radiating face. This flameless or near-flameless oxidation releases energy that heats the emitter material to temperatures usually ranging from 750°C to 1100°C. The incandescent emitter then radiates infrared energy with peak wavelengths tuned to the absorption characteristics of common industrial materials like water, resins, plastics, and solvent-based coatings. Because energy is transferred via radiation, there is no need to heat a massive volume of air first; the thermal response is immediate, and efficiency often exceeds that of open-flame burners by 30% to 50%. Huashuo integrates advanced ceramic matrix compositions and woven metallic fibers to ensure spectral matching and uniform surface emission, effectively eliminating cold spots and thermal gradients.

Key Advantages of Huashuo Infrared Thermal Radiation Burners

• Exceptional Energy Efficiency: By converting nearly all fuel energy into radiant output and directing it at the product, these burners routinely achieve radiant efficiencies above 70%, with combustion efficiencies approaching 99.9% under stoichiometric or slightly lean conditions. Reduced exhaust temperatures mean lower heat losses.
• Ultra-Low Emissions: The porous surface combustion promoted by Huashuo designs allows complete oxidation at relatively low temperatures, suppressing thermal NOx formation dramatically. Typical NOx emission levels are below 20 ppm, often meeting the most stringent environmental regulations without external flue gas recirculation.
• Instantaneous Cycling and Control: Because the ceramic or metal fiber emitter has low thermal mass, the burner reaches full radiant output within seconds of ignition. On-off cycling causes no efficiency penalties, enabling precise temperature control through simple PLC-driven pulse firing sequences.
• Uniform Heat Transfer: The large, flat emitter panels provide consistent radiation density across the entire working width. This eliminates striping defects in continuous web processing and delivers consistent color, moisture content, or coating thickness.
• Versatile Fuel Compatibility: Huashuo burners can be configured for natural gas, LPG, and blends. With specially designed gas trains, they can also handle low-BTU fuels such as coke oven gas or biogas, supporting sustainability initiatives without sacrificing performance.
• Robust Construction and Long Service Life: Emitter plates are made from high-grade alumina-silicate ceramics or durable FeCrAl alloy fibers, both resistant to thermal shock and corrosion. Huashuo encapsulates these emitters in stainless steel housings with built-in thermal insulation, ensuring safe touch temperatures and prolonged operational life exceeding 15,000 hours.
