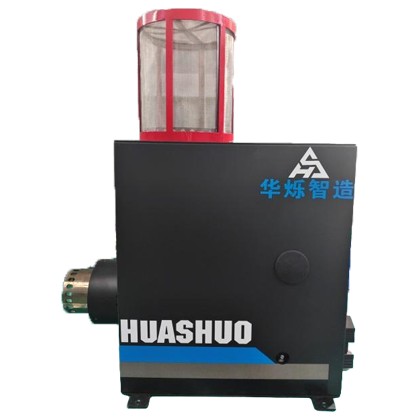

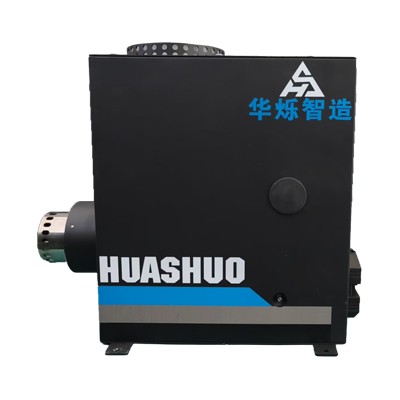

Natural Gas Metal Fiber Infrared Burner

Huashuo manufacturer produces high-quality Natural Gas Metal Fiber Infrared Burner, which uses natural gas as a clean energy source. The combustion ratio is precise, the temperature rise response is rapid, and the temperature control throughout the process is stable in a closed-loop manner. The dynamic gas consumption of the equipment is 2.8 - 4 m³/h, and it can be as low as 2 m³/h after stable temperature control. The energy consumption performance is excellent. Relying on the uniform heat release technology of metal fibers and the balanced thermal conductivity performance of the aluminized tubes, the entire machine has a uniform heat field without dead corners, no carbon accumulation, and no cracking. It can provide stable infrared heat sources for a long time. It is widely applicable to small and medium-sized and automated continuous production lines such as hardware spraying, wood drying, workpiece curing, and industrial constant-temperature baking. It is a universal industrial heating heat source that combines durability, stability, energy efficiency, and environmental friendliness.

Applicable scenarios

It can be used for wood surface coating, small hardware spraying and curing, plastic low-temperature treatment, food drying, and other various small-scale natural gas heating and drying production lines.

Material Advantage

The metal body is sturdy, corrosion-resistant, has a compact structure and is easy to install. The aluminized tube is resistant to high temperatures and oxidation, as well as gas corrosion. It conducts heat evenly without carbon accumulation or cracking. The combination of these two features significantly extends the service life of the entire heating equipment.

Product features

Dual-material composite structure, significantly extending the machine's lifespan

Clean combustion of natural gas, environmentally friendly, low emissions, and pollution-free

Fast heating, precise temperature control, strong production stability

Stepwise low-energy consumption operation, low long-term production costs

Compact and lightweight structure, high installation adaptability

Uniform heat conduction throughout the process, eliminating process defects

Fuel Advantage

Natural gas is clean and low in pollution. It heats up quickly and maintains a stable temperature precisely. It has high combustion efficiency and stable supply. Compared to other fuels, its operating costs are lower.The amount of natural gas required per hour ranges from 2.8 cubic meters to 4 cubic meters. Once the temperature stabilizes, approximately 2 cubic meters of natural gas is needed.

FAQ

Q: What is the state of the equipment after it reaches the predetermined temperature?
A: Once the equipment reaches the predetermined temperature, it enters a maintenance state. The demand for fuel combustion will significantly decrease. The temperature will be maintained at the predetermined level. When the temperature drops, it will automatically increase again to keep the temperature within the range. It will always meet the operational requirements.

Operating Instructions

1. The Natural Gas Metal Fiber Infrared Burner is designed for use with natural gas only. It is prohibited to mix in liquefied gas, mixed gas, or inferior gas sources. This is to prevent unstable combustion, carbon deposition blockage, material corrosion, and premature equipment aging.

2. Before starting, it is essential to check the gas pipeline, joints, and valve sealing performance. Ensure there is no gas leakage, no blockage, and stable gas pressure before igniting and running. This is to eliminate potential gas safety hazards.

3. During operation, it is strictly forbidden to cover or obstruct the radiation tube and the metal fiber heating surface. This is to prevent heat accumulation and poor heat dissipation, resulting in inaccurate temperature control and local high-temperature damage to the equipment structure.

4. Operate strictly within the specified process temperature range to avoid long-term extreme high-temperature overloading operations. Prevent accelerated oxidation of the aluminum alloy tube and thermal fatigue cracking, which may affect the equipment service life.

5. Regularly clean the dust, oil stains, and impurities on the heating surface to keep the metal fibers and aluminum alloy tubes surface transparent and clean. This prevents carbon deposition from affecting combustion efficiency and infrared heat dissipation performance.

6. The constant temperature and low-energy operation of the equipment relies on stable gas supply. It is necessary to maintain a constant gas pressure to avoid frequent fluctuations in pressure, which may cause temperature drift, intermittent combustion, and unstable process quality.

7. During equipment maintenance, cleaning, and disassembly, it is necessary to close the main gas valve and cut off the power supply. Perform the operation after the equipment has completely cooled down to prevent burns from high temperatures and risks of gas leakage.

8. When the equipment is idle for a long time, it is necessary to take dust and moisture protection measures. Before restarting, complete the gas tightness test and no-load trial operation to confirm normal combustion, temperature control conditions, and then put it back into operation.
