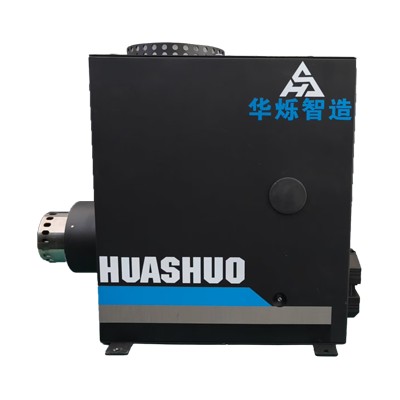

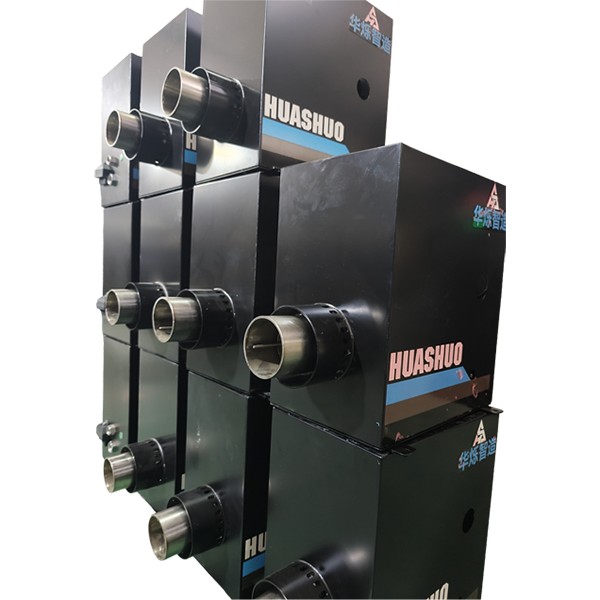

Powder Coating Curing Burner

The Huashuo's high quality Powder Coating Curing Burner can reach a maximum heating temperature of 280 degrees Celsius. The fuel consumption range required for each hour of operation is from 2.8 cubic meters of natural gas to 4 cubic meters of natural gas. Under stable operation conditions, it can reach approximately 2 cubic meters of natural gas. A burner can control a combustion space of 20 cubic meters and evenly distribute the heat within the combustion chamber.

Core feature

The Powder Coating Curing Burner operates in a thermal radiation heating mode. In this mode, the flame does not directly contact the workpiece inside the combustion chamber. Instead, it diffuses the temperature through the thermal radiation pipes, thereby significantly reducing the damage caused by the flame to the workpiece. This mode is suitable for precise temperature control and situations where the workpiece is prone to damage.

Application scenario

It is mainly used in hardware, auto parts, computer cases, and aluminum profile powder coating production lines. It provides heat for curing ovens and drying ovens, enabling the coating to be baked and solidified. It is suitable for continuous mass production on assembly lines and takes into account energy saving and stable temperature control.

Safety

The thermal radiation combustion machine has safety protection at every stage from the gas source to the combustion process and throughout the entire operation. It is equipped with re-ignition devices, fireout protection devices, safety devices for excessive air pressure, safety devices for pipe blockages, and a gas pressure stabilizing device.

Heating method

Compared with the traditional dynamic heating method of the thermal circulation furnace, the Powder Coating Curing Burner adopts a more sophisticated static heating method. This method allows for the continuous movement of the workpiece without dust or smoke, and can always maintain the original state and cleanliness of the workpiece. This significantly improves the yield rate of the products.
