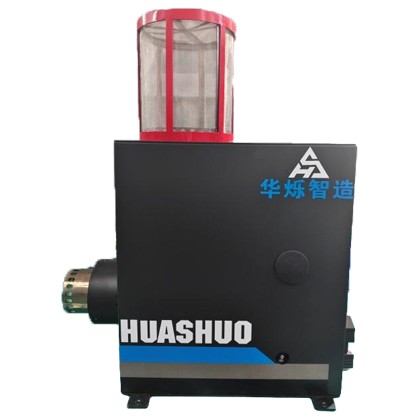

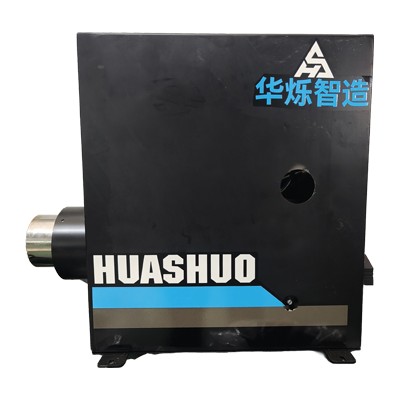

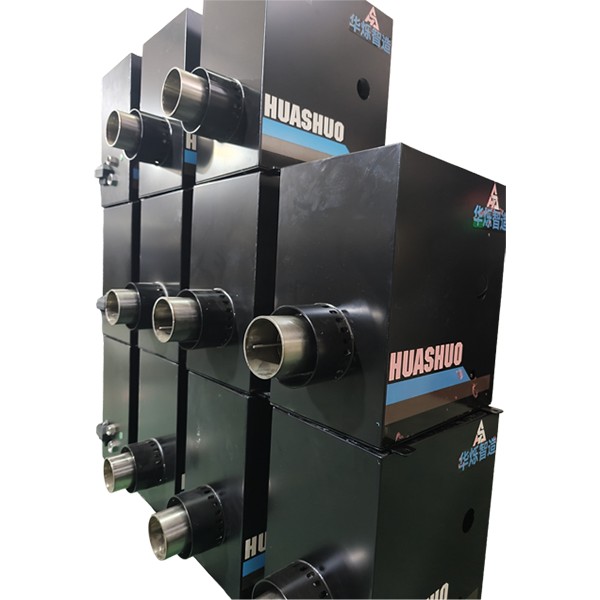

High Efficiency Metal Fiber Infrared Burner

The China High Efficiency Metal Fiber Infrared Burner by Huashuo factory is equipped with a metal body, uses natural gas for heating, has a maximum temperature of 280℃, is compact in size and has uniform heating, is low in nitrogen emissions and energy-saving, and is suitable for various small and medium-sized drying production lines for hardware, wood products, food, etc.

Advantages

1. The combustion surface of the metal fibers has high thermal radiation efficiency. The constant temperature output at 280℃ is stable, the combustion is thorough, and the nitrogen oxide emissions are lower and more environmentally friendly.
2. The integrated metal casing is resistant to temperature and corrosion. The body is lightweight and compact, facilitating quick assembly and layout in narrow drying channels and small production lines.
3. The thermal start-up response is rapid, the temperature control is sensitive, and it is suitable for low-temperature drying of various products such as wood, food, and hardware. The adaptability is wide.

Pipeline parameters

The radiant heating tube is made of aluminized steel pipe with an outer diameter of 10 cm and a wall thickness of 2 mm. It features outstanding high-temperature and oxidation resistance as well as gas corrosion resistance, delivering even heat transfer and robust mechanical strength. The tube resists cracking and carbon buildup, boasting a far longer service life than conventional steel pipes.

Notes for Attention

1. During operation, keep the site well-ventilated. Regularly clean the dust on the metal fiber combustion surface to prevent blockage and avoid abnormal combustion.
2. Before maintenance or disassembly, turn off the gas source and power supply. Wait for the equipment to cool completely before operating. Regularly test the sealing performance of the gas pipeline.
3. Do not stack flammable materials around the equipment. In case of flashback or gas odor faults, immediately stop the machine for inspection. After the faults are eliminated, resume operation.

FAQ

Q:Can you can design the equipment according to our size? A:It can be customized according to specific requirements.
