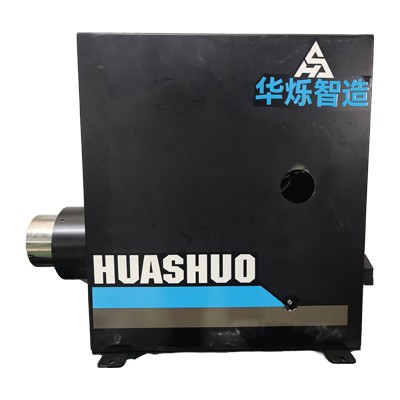

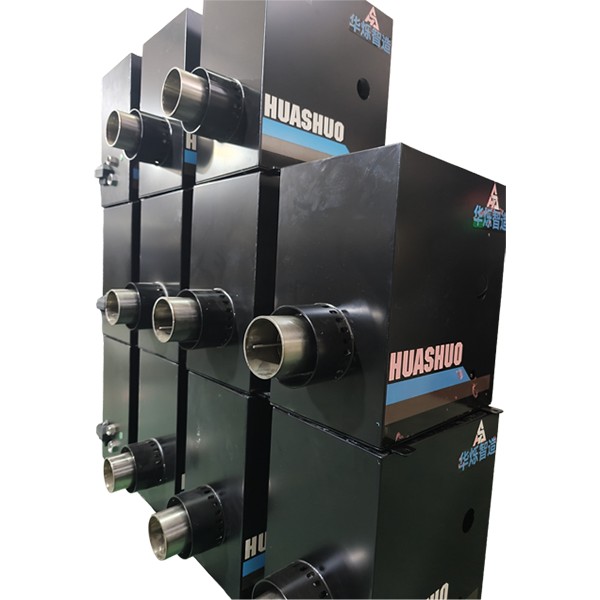

Natural Gas Radiant Tube Burner

This China Natural Gas Radiant Tube Burner supplied by Huashuo factory uses natural gas as fuel and is equipped with a high-temperature-resistant aluminum-coated tube for sealed infrared heating. The maximum working temperature can reach 280℃. The heating is uniform and dust-free, with precise temperature control and energy-saving features. It is suitable for powder coating curing and industrial constant-temperature drying operations of metal workpieces in fields such as automobiles, furniture, and hardware.

Fuel Description

The fuel type is natural gas. The consumption of natural gas per hour ranges from 2.8 cubic meters to 4 cubic meters. After the temperature stabilizes, it is approximately 2 cubic meters. Natural gas is a clean energy source, significantly reducing industrial pollution to the environment and meeting various environmental protection goals.

Advantages

1. The closed heating system using infrared radiation is adopted, eliminating the problem of dust caused by convective air. The workpiece is heated uniformly throughout, effectively avoiding issues such as paint particles, orange peel, color difference and poor curing, and meeting the standards of high-end coating processes.
2. This equipment is designed to use clean energy natural gas as the main fuel. The fuel burns thoroughly, has high calorific value, low loss, and low operating costs. The combustion is free of impurities and has low nitrogen emissions, which meets the requirements of clean and environmentally friendly production in industrial painting.

After-sales Guarantee

The product has a well-established after-sales service system, with a one-year warranty, remote equipment guidance and assistance, and the option to contact at any time within 24 hours.

Notes for Attention

Before starting the machine, check that there is no leakage in the gas pipeline and that the radiation tubes are in good condition. Before ignition, thoroughly purge the furnace chamber. It is strictly prohibited to ignite with gas directly to avoid the risk of explosion and ensure the safe startup of the equipment.

Usage Notes

1. Before installing the Natural Gas Radiant Tube Burner, inspect the pipelines, joints and sealing areas to ensure there is no leakage of natural gas. Regularly conduct gas leak detection to prevent potential gas leakage hazards.

2. It is necessary to match a qualified gas pressure regulating device to ensure the supply pressure is stable within the equipment's rated range. Strictly prohibit abnormal operation at high or low pressure.

3. Before starting, fully evacuate the residual air in the pipelines and complete the ignition process according to the specifications to prevent gas accumulation and potential explosion. Maintain good ventilation in the workshop.

4. During operation, confirm the integrity of the radiant tubes and the aluminum infiltration coating to avoid damage to the high-temperature-resistant tube walls due to collision, do not operate at temperatures exceeding 280℃ (strictly prohibited).

5. Regularly clean the burner and the air intake filter to prevent dust and impurities from blocking the pipelines, affecting combustion efficiency and temperature control accuracy.

6. Before maintenance or repair, make sure to close the main gas valve and cut off the power supply. Wait for the equipment to cool down completely before operating. Avoid scalding from high temperatures and gas risks.

7. Monitor the gas consumption, temperature parameters and combustion status on a daily basis. Immediately stop the machine and check when there are abnormal sounds, unusual odors, or unstable temperatures.

8. Installation and commissioning as well as gas pipeline modification must be carried out by certified personnel. Follow local gas safety regulations and industrial heat treatment equipment safety procedures.

9. When the equipment is to be shut down for a long time， close the main gas valve and protect the pipeline. Before restarting， complete the gas leak detection and trial run to confirm the normal operating conditions.
